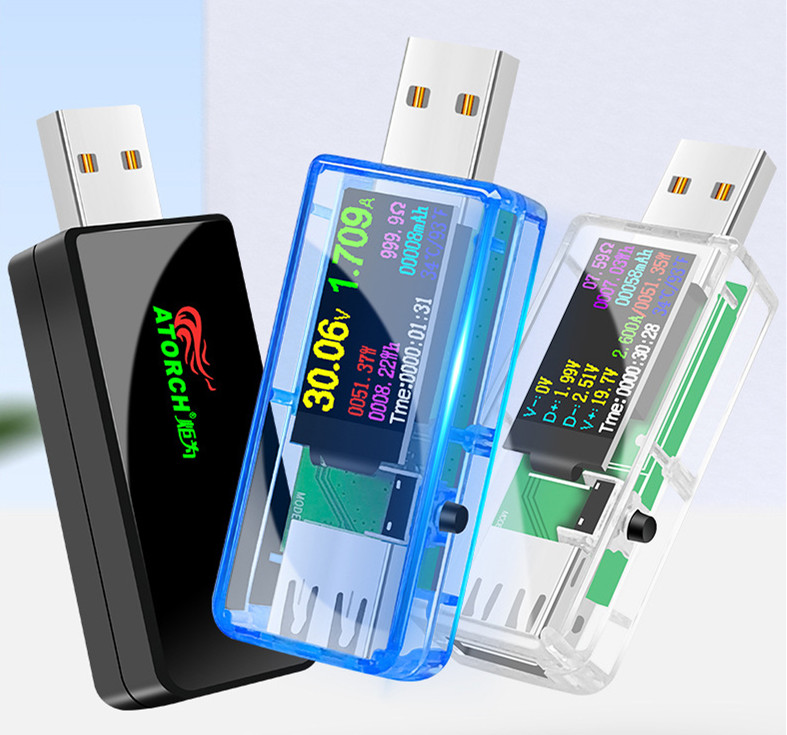

Voltage, current and current meter DC detector

Voltage measurement range: 3.30V ~ 30.0V
Current measurement range: 0.00 ~ 5.10A
Cumulative capacity range: 0 ~ 99999mAh
Cumulative power range: 0 ~ 999999mWh
Power measurement range: 000.00 ~ 150.00 W
Impedance measurement range: 1 ~ 999.9 Euro
Temperature measurement range: 0 ~ 80 ° C 0 ~ 80 ° C
Timing time: 999 hours 59 minutes 59 seconds
Input interface: USB
Output interface: USB
USB D + voltage range: 0V ~ 2.99V
USB D-voltage range: 0V ~ 2.99V
Refresh time:> 500mS / times> 500mS / times
Measurement rate: about 0.5 times / second
Display type: IPS true color digital LCD display with heavy cost of 12,800 pixels
Screen resolution: 160 * 80
Product size: 67mm * 24mm * 14mm
Self-consumption current: <0.02A
Working temperature: -10 ~ + 60 degrees Celsius -10 ~ + 60 ° C
Working humidity: 10 ~ 80 (no doubt) 10 ~ 80 (no doubt)

Working pressure: 80 ~ 106kPa
